e-range Crossfire - Credit Card Configuration

Credit Card Configuration

Introduction to Credit Card Configuration

ETS Corporation's EMoney2K & EMoney Gift Cards

Introduction to Credit Card Configuration

The e-range Crossfire software can utilize 3 different processing components. You may choose from ETS Corporation's EMoney2K and EMoneyGC systems or TPI Software's SmartPayments Client. If you have an existing processor that you would like to use, it may be possible to use a Hypercom (TPI) engine that would allow you to connect to that particular processor if it is supported. For a list of supported processors click here

All of the configuration screens on this page are accessible through the "Credit Card" Control Button on the Preferences Screen.

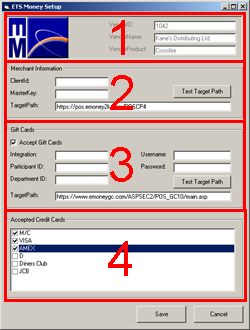

ETS Corporation's EMoney2K & EMoney Gift Cards

1) Vendor
         Information: These settings are internal to the e-range Crossfire application and cannot be modified. These fields identify the Crossfire application as the issuer of the transactions to the ETS servers.

2) Merchant
         Information: The ClientID, MasterKey, and TargetPath are issued to you by ETS Corporation. You must enter your assigned numbers from ETS into these fields.

3) Gift Cards The Integration password, Participant ID, Department ID, Username, Password, and TargetPath are assigned to you by ETS Corporation to allow gift card support. You must enter your assigned numbers from ETS into these fields, but only if you are requiring Gift Card support. Please note that the "Accept Gift Cards" checkbox must be checked in order to allow gift cards at your ball dispenser.

4) Accepted
         Cards:
You can set the acceptable Credit Cards here.

Please note that you will need to talk to ETS Corporation to notify them of the type of Credit Cards you wish to accept.

The system can be configured to accept Visa, Mastercard, American Express, Discover, Diner's Club, and JCB Credit Cards.

5) Technical
         Support: ETS Corporation, Toll Free: 1(800)834-7790

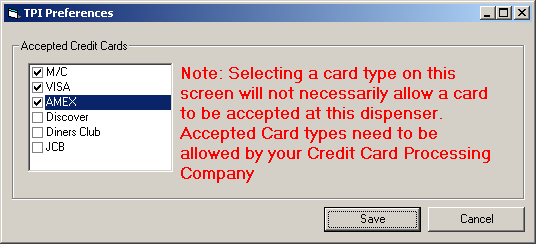

TPI Software SmartPayments Client

You can set the acceptable Credit Cards here.

Please note that you will need to talk to your Credit Card Processing company (ie: NOVA, Paymentech, Concord...) to notify them of the type of Credit Cards you wish to accept

The system can be configured to accept Visa, Mastercard, American Express, Discover, Diner's Club, and JCB Credit Cards.

	1) Vendor Information:	These settings are internal to the e-range Crossfire application and cannot be modified. These fields identify the Crossfire application as the issuer of the transactions to the ETS servers.
	2) Merchant Information:	The ClientID, MasterKey, and TargetPath are issued to you by ETS Corporation. You must enter your assigned numbers from ETS into these fields.
	3) Gift Cards	The Integration password, Participant ID, Department ID, Username, Password, and TargetPath are assigned to you by ETS Corporation to allow gift card support. You must enter your assigned numbers from ETS into these fields, but only if you are requiring Gift Card support. Please note that the "Accept Gift Cards" checkbox must be checked in order to allow gift cards at your ball dispenser.
	4) Accepted Cards:	You can set the acceptable Credit Cards here. Please note that you will need to talk to ETS Corporation to notify them of the type of Credit Cards you wish to accept. The system can be configured to accept Visa, Mastercard, American Express, Discover, Diner's Club, and JCB Credit Cards.
	5) Technical Support:	ETS Corporation, Toll Free: 1(800)834-7790
